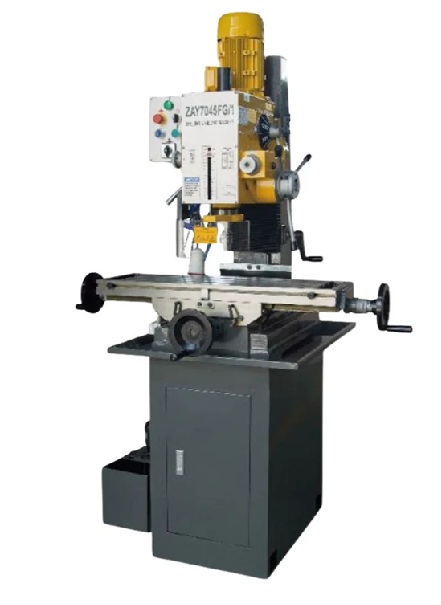

Aiko 45mm Drilling & Milling Machine

Description

FEATURES :

• Table Size : 800 x 240mm
• Power : Single Phase 230V
• Step speed changed cyclically and spindle auto-feeding and cyclic change of feeding speed
• Milling, Drilling, Tapping, Boring and Reaming
• Head swivels plus/minus 45 degrees vertically
• Spindle micro feed precision
• Adjustable ribs on table precision
• Accurate position, strong rigidity, powerful cutting
• Gear-driven type and square column

STANDARD ACCESSORIES :

• Drill Chuck and arbor
• Draw Bar
• Allen keys
• Wedge
• Tool Box with tools

Specifications:
Max Drilling Capacity : 45mm
Max Face Milling Capacity : 80mm
Max End Milling Capacity : 32mm
Max Distance from spindle nose to table : 450mm
Max Distance from spindle axis to column : 260mm
Spindle travel : 130mm
Spindle taper : MT3, MT4 & R8
Step of spindle speed : 6 steps
Range of spindle speed 50 Hz : 80 -1250 rpm
Auto feeding step of spindle : 6 steps
Auto feeding amount of spindle : 0.06-0.30mm/r
Swivel angle of headstock : +/- 45ᵒ
Table size : 800 x 240mm
Forward and backward travel of table : 175mm
Left and right travel of table : 700mm
Motor power : 1.5kW or 2hp
Net weight : 320 Kg
Gross weight : 370Kg
Packaging size : 770 x 880 x 1160mm
Note : DRO display panel is optional accessories
