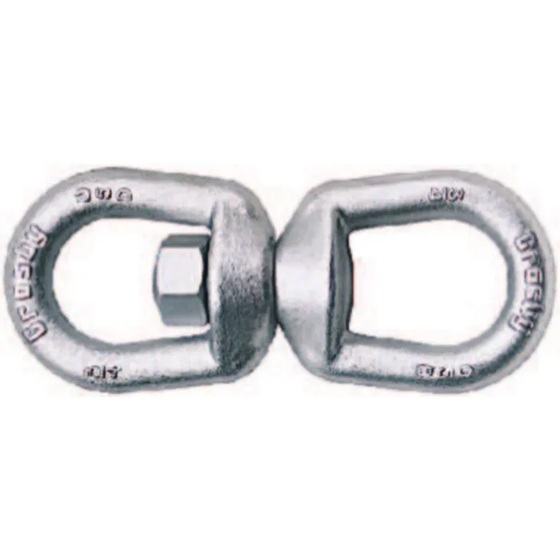

Crosby G402 10000LB REGULAR SWIVEL 7/8″

Description

• Crosby 402 forged swivels are positioning devices and are not intended to rotate under load
• Hot-dip galvanized
• Quenched & Tempered
• Crosby products meet or exceed all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements
  • Importantly, Crosby products meet other critical performance requirements, including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
• G-402 swivels meet the performance requirements of Federal Specification RR-C-271G, Type VII, Class 2, except for those provisions required of the contractor

Specifications:

Nominal size : 7/8″
Working load limit : 10.000lbs
Unit weight : 6.25lbs

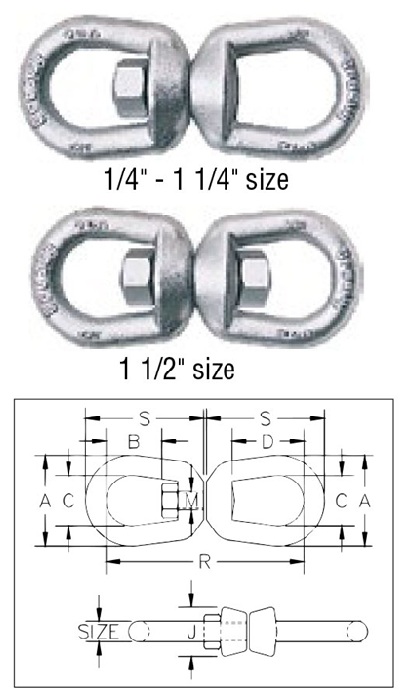

Dimension :
A : 4.00ins
B: 2.06 ins
C : 2.25 ins
D : 3.06 ins
J : 2.13ins
M: 1 in
R: 8.38 ins
S : 5 ins
