Description

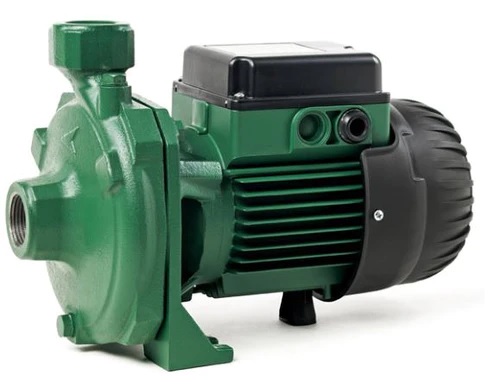

DAB K20/41T is a three phase pump that is powerful and able to transfer clean, free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, with properties similar to water.
FEATURES
- Pump body and motor support in cast iron
- Technopolymer or cast iron impeller, as per the TECHNICAL DATA table
- Carbon/ceramic mechanical seal
- Closed asynchronous type, external ventilation cooling
- Rotor running on ball bearings, oversized to ensure low noise and durability
SPECIFICATIONS
| Input Voltage | 415V 3 Phase AC 50Hz |
|---|---|
| Power Rating P1 | 0.64kW |
| Power Output | 0.37kW |
| Horsepower | 0.5HP |
| Current Rating | 2.3A |
| Max Flow Rate | 100 L/min |
| Head Size | 22 ~ 8.3m |
| Max Speed | 2,800rpm |
| Pumped Liquid Temperature | -10 °C to +50°C |
| Maximum Ambient Temperature | +40°C |
| Maximum Operating Pressure | 6 bar (600k Pa) |
| Protection Class | IP44 |
| Insulation Class | F |
| Inlet/Outlet Size | 1″ |
Made in Italy
APPLICATIONS
– Domestic
– Civil
– Industrial
– Agricultural systems
– Decanting, mixing and irrigation uses.
