Description
Pump specifications : Working pressure 350 bar – 5075 psi
Flow rate 23 L/min – 6.0 GPM
Plunger Triplex fully ceramic plunger

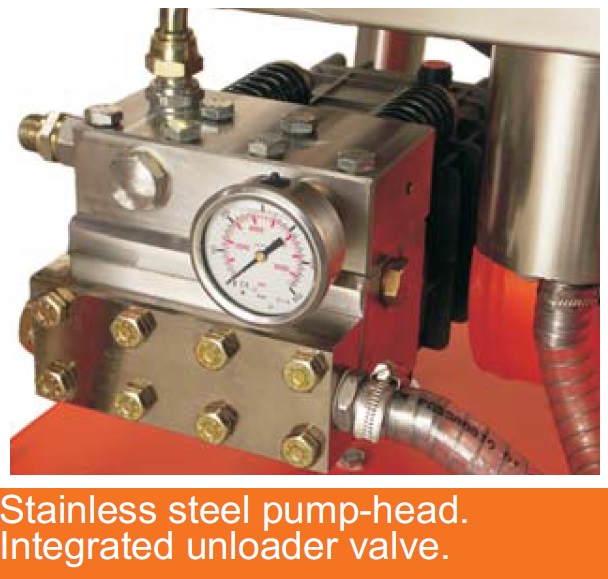

Pump head High tension brass material
Valve design 3 x suction/discharge valve
Drive Flexible coupling
Pressure relief Unloader valve
Safety valve + 10% working pressure
Motor specifications : Capacity 20HP – 15 kw
Protection IP54 / Class F
Power Supply 400v/50hz / 3-phase
Current 28A

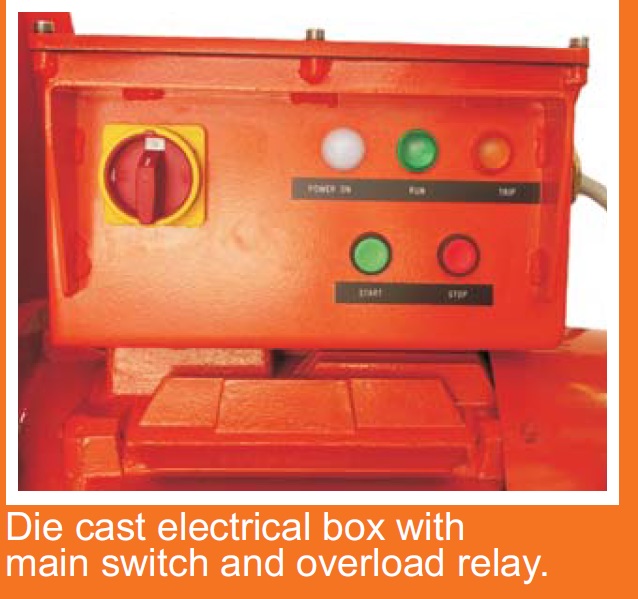

Electrical System Star-Delta starter
Electrical cable length 15m
Frame specifications : Material Hot dipped galvanized / stainless steel
Paint Orange RAL 2009

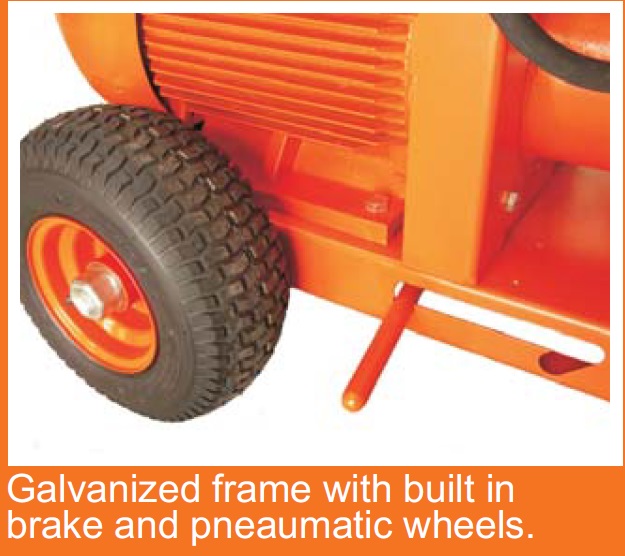

Mounting 2 x hard rear wheels & 1 front castor wheel
Dimensions 1060 mm x 760 mm x 850 mm (L X B x H)
Weight 265 kg
Water Tank : Material Moulded plastic tank
Capacity 30 litres
Internal Filtration Strainer filter (80 microns)
Inlet Fitting 3/4”hose nipple
Standard Accessories
81400962 Hose DN10 – 20M – WP500bar 2 x ½” BSPF swivel 01
81400895 Gun dry shut 560 bar long complete (land use) 01
81500637 Nozzle fan 15045 01
81500692 Rotating nozzle 045 01
80500651 Nipple HP SS 01
80500971 Bonded seal 02
Operating and Spare Parts Manual (via email) 01
