Description
Pump specifications :
Working pressure 500 bar – 7250 psi
Maximum pressure 550 bar – 7975psi
Flowrate 16.00 l/m – 4.2 gpm
Pump Triplex ceramic plunger

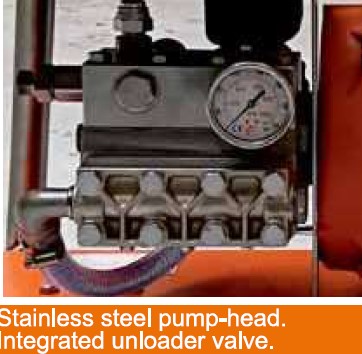

Material Stainless Steel pump head
Valve design Stainless steel
Drive Aluminum motor Direct coupling
Safety/By-pass valve : Integrated in pump head
Motor specifications :
Capacity 20hp – 14.7kw
Protection IP 55 / Class F
Power supply 440v/60hz/3phase or 380v/50Hz /3phase
Amperage 27 Amp
Electrical system Star/delta starter.
Overload relay and main circuit breaker
Frame specifications :
Material Stainless steel top & main frame
Paint Orange RAL2009
Mounting 2 solid rear wheels c/w brake & 1 front caster Wheel.
Super Slim Frame:
Dimensions 950 x 500 x 850mm
Weight 170kgs
Lifting Hook : Solid Balanced lifting eye for crane
Water tank : Material Polyurethane
Capacity 30 liter.
Water level control In-tank float valve.
Internal filtration Stainless steel filter unit.
Inlet fitting 1” quick release hose nipple.
Standard Accessories :
15M 4CORE ELECTRICAL CABLE C/W REEFER PLUG
HOUR METER FOR MACHINE USAGE RECORD
20M 500BAR HIGH PRESSURE HOSE C/W 1/2″ SS FEMALE SWIVEL
TRIGGER OPERATED DRY SHUT GUN C/W 80CM S.S. LANCE
HARDEN S.S. STRAIGHT JET NOZZLE
OPERATION & SPARE PART MANUAL (SET) + SERVICE VIDEO CD
