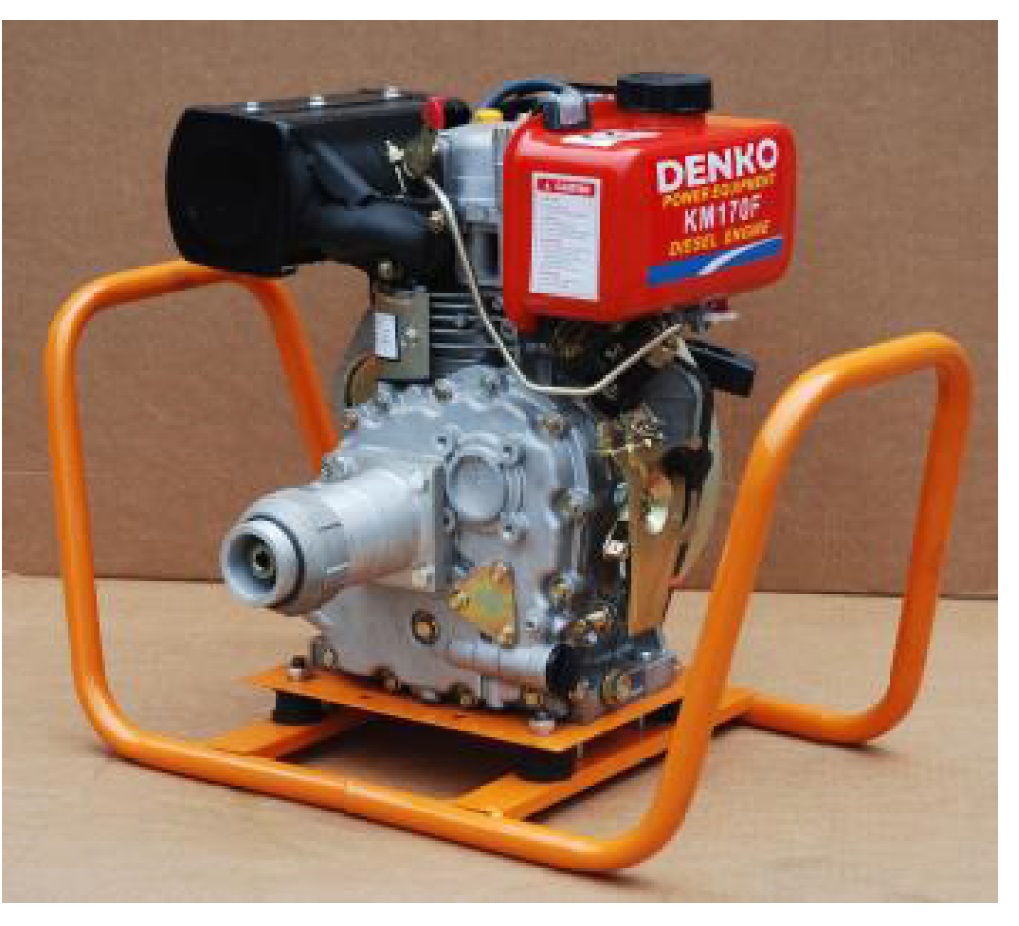

Denko Diesel Engine Driven Vibrator

Description

Features
– Direct injection combustion system
– Efficient Air Cleaner System
– Low noise, great stability and compact structure
– Economical – huge fuel saving s compare to petrol type.

Specifications

Type : 170F single cylinder, vertical 4 cycle air-cooled diesel engine
Combustion system : Direct injection
Displacement c.c. (cu.in) : 211 ( 12.88)
Bore X stroke mm ( in ) : 70 x 55 ( 2.76 x 2.17)
Engine speed rpm : 3000 / 3600
Maximum output ps: 3.8 / 4.2
Continuous output ps: 3.4 /3.8
Power take off : Crankshaft or camshalf ( camshaft PTO rpm is 1/2)
Starting system : recoil
Fuel tank capacity Liter ( US gal ) : 2.5 ( 0.66)
Lub oil capacity  Liter ( US gal) : 0.75 ( 0.198)
Dimension LxWxH: 332 x 384 x 416mm or 13.07 x 15.12 x 16.38ins
Dry weight : 26 Kg or 57lb
