Description
Euroboor ECO.50S
Magnetic drilling machine
Ø 12 – 50 mm / 12 kg
The Euroboor ECO.50S magnetic core drilling machine converts maximum power through its two speed oil lubricated gearbox. This improves motor efficiency and lifetime of key components. This portable industrial magnetic core drilling machine has an integrated slide which ensures stable support, faster drilling times and more accurate hole sizing.
Category: Big scale fabrication
ECO.50S-230 features :

 High-accuracy capstan hub
MT3 spindle with integrated tool cooling and lubrication
Strong dual coil CNC machined magnet
Two-speed oil lubricated gearbox
Additional benefits
Integrated slide for:
 High accuracy
 Enlarged lifecycle
 Minimal vibration
High-precision height adjustment for:
 Low maintenance
 Minimal wear correction

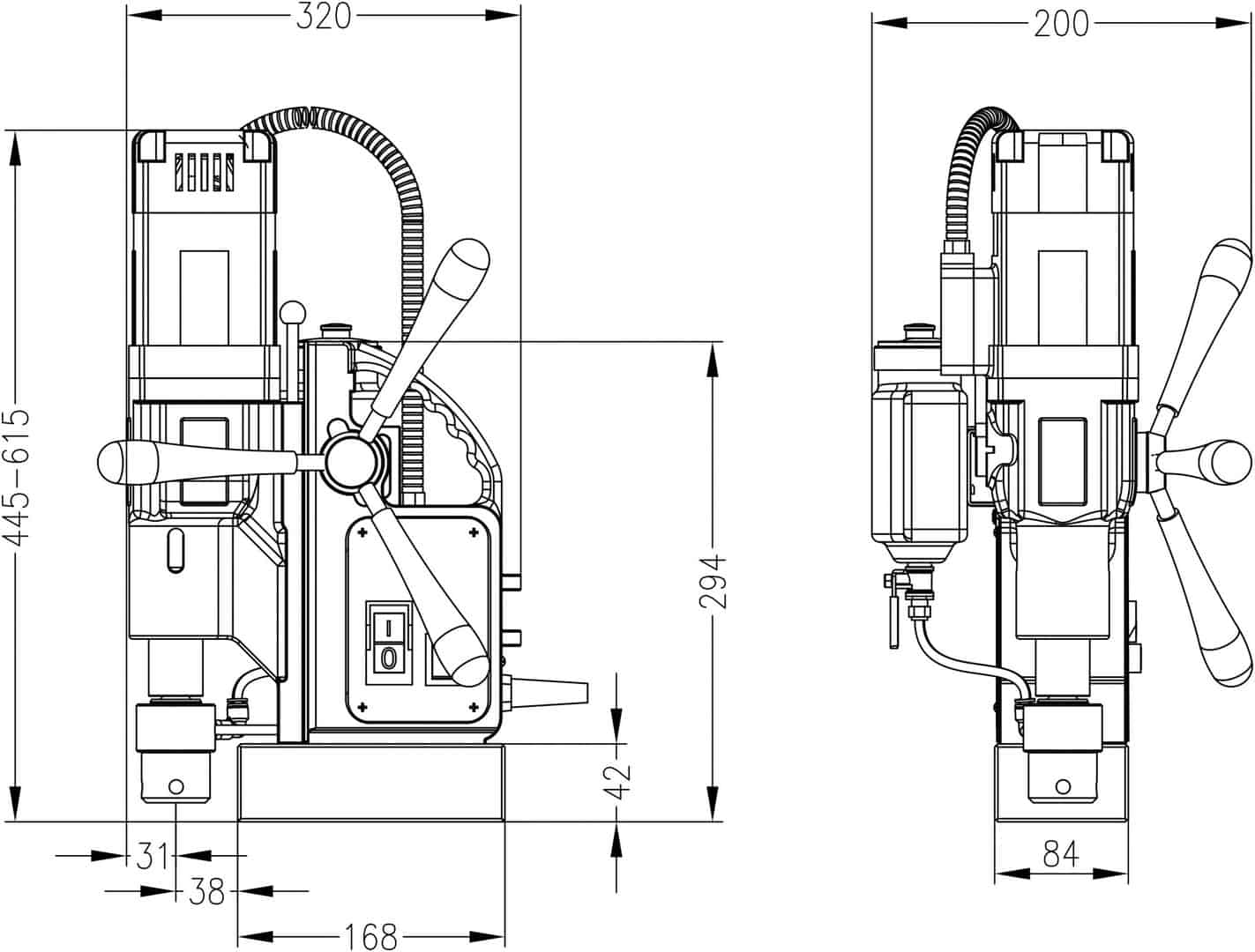

Specifications:
| Annular cutting | Ø 12 – 50 mm |
| Twist drilling | Ø 1 – 23 mm |
| Countersinking | Ø 10 – 55 mm |
| Length | 320 mm |
| Width | 200 mm |
| Height | 445 – 615 mm |
| Stroke | 170 mm |
| Weight | 12 kg* |
| Magnet (l x w x h) | 160 x 80 x 42 mm |
| Magnetic force | 1,700 kg |
| Motor power | 1,250 W |
| Total power | 1,300 W |
| Speed (no load) | (I) 380 rpm (II) 690 rpm |
| Speed (load 1,250 W) | (I) 235 rpm (II) 415 rpm |
| Spindle (Weldon) | MT3 19.05 mm |
| Voltage | 220 – 240 V / 50 – 60 Hz |
| *Exclusive power cord and handles |
Made in Europe
