Description
ECO.50+/T magnetic core drilling machine is suitable for both drilling and tapping. The Euroboor ECO.50+/T with Morse Taper 2 spindle is equipped with innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.

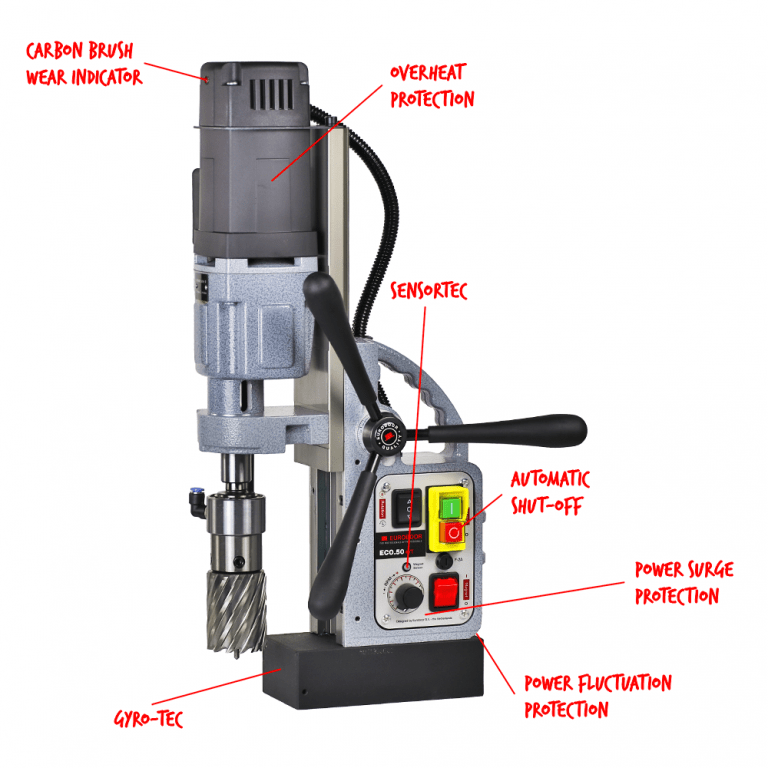

ECO.50+/T features:
Particularly suitable for tapping
Overheat protection
Gyro-Tec
Power surge & fluctuation protection
Carbon brush wear indicator & automatic shut-off
- NEW DUAL COIL HIGH DENSITY MAGNET
- MAGNET INDICATOR (SENSORTEC)
- TEMPTEC
- STEPLESS ELECTRONIC SPEED CONTROL
- POWER ASSIST READY
- SAFETY RELAY CIRCUIT
- DEPTH INDICATOR
- CLOCKWISE AND ANTI-CLOCKWISE SWITCH WITH “ZEROPOINT” CHANGE OVER PROTECTION
- INCLUDES M10, M12, M14 and M16 TAP-HOLDER
MAX. Ø HOLE CUTTER : 12 – 50 mm
MAX. Ø SPIRAL DRILL : 1 – 23 mm
TAPPING Ø : M3 – M20
COUNTERSINKING Ø : 10 – 40 mm
LENGTH : 230 mm
WIDTH : 160 mm
HEIGHT : 420 mm
STROKE : 150 mm
WEIGHT : 13 kg
MAGNETIC FORCE : 1850 kg
MOTOR POWER : 1150 W
TOTAL POWER : 1260 W
SPEED (I) : 250 min-1
SPEED (II) : 450 min-1
SPINDLE MT : MC2 – 19.05 mm Weldon
made in Europe
