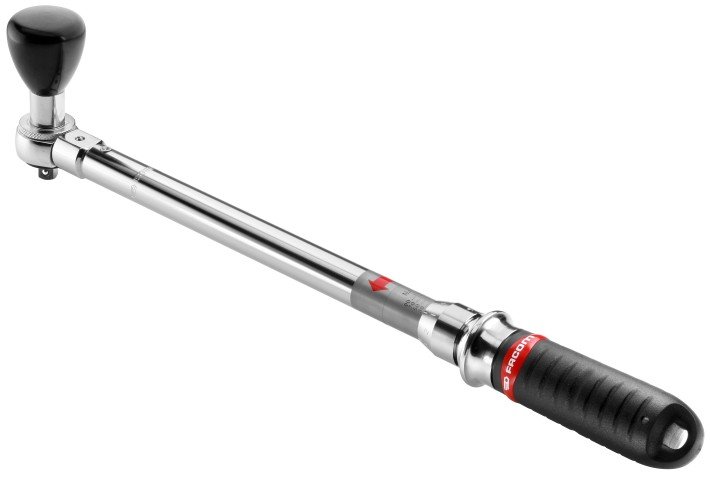

FACOM 306A CLICK WRENCHES WITH REMOVABLE RATCHET 40 to 200Nm

Description

STANDARDS: NF EN ISO 6789, ISO 6789, DIN EN ISO 6789

• Factory accuracy: ± 2% except: – R.306-25D – K306-600D – K306-1000D (± 4%). – R.304DA (± 6%).
• Reliability of mechanism: 50 000 cycles (wrenches up to 200 N.m).
• Use possible with accessories: – End fitting: 9 x 12 or 14 x 18 mm. – Diameter: 30 mm.
• One-way wrenches usable for unscrewing by reversing the bits.
• Numbered wrenches supplied with ISO 6789 calibration certificate.
• Supplied in a plastic box with ratchet and hinged handle (except Ref R.306A25 – R.301A – K.306A600 – K.306A1000).

	S.306A200
Length L [mm]	515.0
Attachment [“]	14 x 18
Capacity [Nm]	40 – 200
Graduation [Nm]	1.0
Handle type [“]	S.305P
Weight [Kg]	1.3
Ratchet [“]	S.382
