Description
Duty Rating: Type IAA
Load: 375

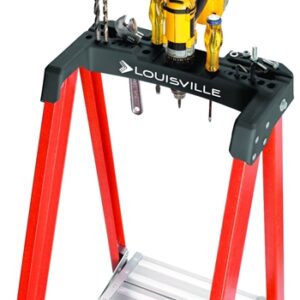

This Louisville 6 foot Pinnacle Platform step ladder has a 375lb load capacity, rated ANSI Type IAA. It features a 36″ extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1806HD Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.
FEATURES
- 36″ Tall Extended Handrail From Top To Platform
- 50% Larger Platform Area For Added Comfort And Safety
- ProTop With Multiple Tool Slots And Magnet
- Raptor Slip-resistant Boot
- Shox Impact Absorption System
- Double-Rivet Step Construction
- Wide Back Braces
Specifications:
- Duty Rating: Type IAA
- Load Capacity (lbs): 375
- Size: 6
- Number of Steps: 6
- Rung Type: Standard Step
- Step Depth: 3
- Material: Fiberglass
- Weight: 36
- Maximum Standing Height (in): 5’ 8”
- Maximum Standing Height (in): 45
- Maximum Reach (in): 124
- Open Volume (cu. ft.): 15.22
- Open Volume (cu. m.): 2.89
- Open Height (in): 103.375
- Open Depth (in): 61.5
- Open Width (in): 27.75
- Closed Volume (cu. ft.): 18.29173448
- Closed Height: 111.1
- Closed Depth: 10
- Closed Width (in): 27.8
- Top Width Closed (in): 18.4375
- Platform Depth (in): 21.25
- Platform Front Width (in): 14.5
- Platform Rear Width (in): 14.5
- Platform Height (in): 68
- ANSI Certified
- OSHA Certified
Made in USA
