Description

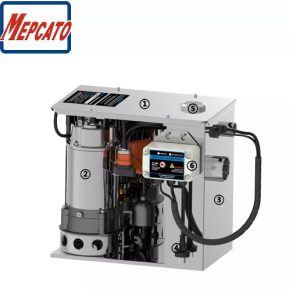

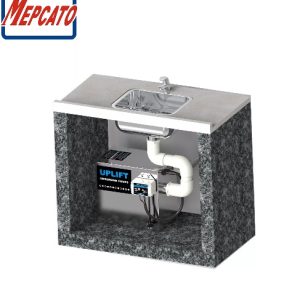

The undersink pump series are an automatic system designed to handle sink and basin waste where it is not possible to achieve gravity fall to sewer. It incorporates a small electric submersible pump.
The tank receives influent liquid from the basin or sink. As the level in the tank rises, the float switch rises & activates the pump. The pump then discharges the liquid causing the level to fall thus turning the pump off.
Features :
- Stainless Steel Construction
- Durability is the key with high temperature and corrosion resistant options available for maximum service life
- Heavy Duty Pump
- Powerful Performance easily handing small solids, plus providing the lift for high heads and long discharge pipe runs that do not run on grade
- Smart Design
- A compact design that comes fully assembled, with all connections on one face giving best use of space and easy installations
- Pre-wired and tested
- Single trade installation with a 1.5 meter power cable and plug, for connection to standard socket outlet
- Odour Filter
- Activated carbon can reduce the smelly and keep the air clean
- High Level alarm
- provides an audible and visual high level warning including a voltage free (BMS) alarm output, available on the UPLIFT System
Specifications :
- Tank Capacity : 70L
- Effective Purging Capacity (From Max Start lvl to Stop Lvl) : 23.2L
- Max. Head : 11m
- Max. Capacity : 250 L/min
- Max. Solid : 10 mm
- Max. Temperature: 40℃
- Carbon Filter : Standard
- Audible height level alarm : Standard
- Voltage : 220V
- Frequency : 50 Hz
- Power : 0.4 kW
- Amps : 2.6
- Connections
- Inlet : 50 mm
- Discharge : 25 mm
- Dimensions : 531 x 443 x 360 mm
