Description

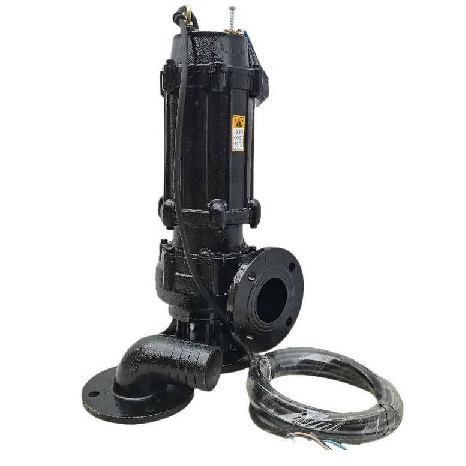

The body of motor and pump is made of rigid cast iron-lasting durability.
Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.
Semi-open impeller made of high chrome alloy match with wear plate(ductile iron) achieves superior durability.
Effective motor cooling due to discharge channel cast as part of the motor housing. Space economically by a top outlet.
Discharge 50mm(2”)to 150mm(6”).motor 1.5kW(2HP).
Hermetically sealed motor equipped build-in thermal protection for the power below 15kW.
Application:
Civil engineering
Mines, quarries, coal ore& slurries
Sewage treatment plants
General pumping purposes
Specifications:
- Power ( KW / HP ): 2.2K / 3H / 415V / 50Hz
- Max Capacity : 50 M3/H , 0..83 M3/M
- Max Head : 21 M
- Outlet : 80 MM
- Dimension : 585 x 270 x 270
- N.W (Kg) : 36
