Mitutoyo 104-148A 900mm to 1000mm Outside Micrometer with Interchangeable Anvil

$2,550.00

104-148A

Add to wishlist
SKU: 104-148A Category:

Description

A Mitutoyo non-digital micrometer that accepts easily interchangeable anvils to enable a wide variety of measurement,
such as tubing thickness, shoulder-edge distance and rivet height.
A friction thimble guarantees repeatable measurement.

Features

Digital/Analog:
Analog
Delivered:

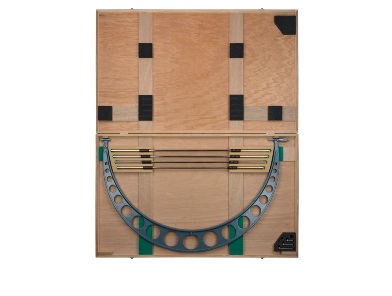

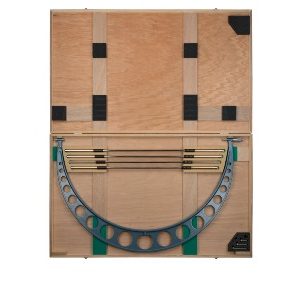

Including box, key, setting standard (4 pcs.), anvils (4 pcs.)
Inch-Metric:
Metric
Range:
900 – 1,000 mm
Graduation:
0,01 mm
Limit of error:
±18 µm
Spindle feed error:
3 µm
Flatness:
1 µm
Parallelism:
12 μm
Measuring face:
Carbide-tipped micro-lap finish spindle and hardened steel anvil
Measuring spindle:
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:
10 – 14 N
Setting standard:
4 (900, 925, 950, 975 mm)
Interchangeable anvils:
4
Mass:
11.78 kg
