Description
A set of six Mitutoyo transfer gauges that enables the diameter of holes, bores or grooves to be measured with outside micrometers or calipers. In operation the spring loaded plunger of a gauge is allowed to expand within the feature to be measured and then locked in place using the knurled rotary control on the end of the handle. In practice some manipulation is necessary to ensure that the minimum size has been captured, after which the gauge is carefully withdrawn so that the dimension across the contact surfaces can be measured.
- Enables small hole, bore and groove measurement using existing workshop tools.
- Knurled finish provides secure handling and easy locking.
Specifications:
| Inch-Metric: |
Metric
|
| Range: |
8-12,7 mm
12,7-19 mm 19-32 mm 32-54 mm 54-90 mm 90-150 mm |
| Gauges included: |
155-127
155-128 155-129 155-130 155-131 155-132 |
| Delivered: |
Including plastic wallet
|
| Digital/Analog: |
Analog
|

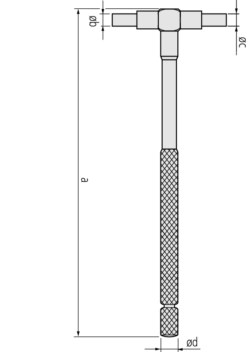

Dimensions:
| a: |
110
110 110 150 150 150 mm |
| b: |
4
5 5 7.5 7.5 7.5 mm |
| c: |
3
3,5 3,5 6 6 6 mm |
| d: |
5
5.5 5.5 8 8 8 mm |
