Description

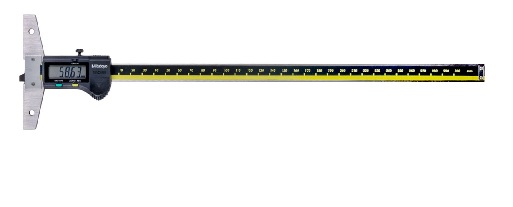

The Mitutoyo ABSOLUTE Digimatic depth gage provides highly accurate depth measurements for any shape that has a step, groove or slot. The Mitutoyo ABSOLUTE Digimatic depth gage features hardened, micro-lapped measuring faces and a base for improved accuracy and wear resistance. The Mitutoyo 571-203-30 digimatic depth gage is constructed of hardened stainless steel and is ideal for use on the shop floor. Measurements are displayed on a digital LCD readout with SPC output for easy, automatic recording.
eatures:
- Available in Metric and Inch/Metric models
- Optional wider extension bases are available (up to 18″/450mm range models)
- Convenient mounting holes included on the base for repeatable accuracy
- Keeps track of the origin point for the life of the battery
- SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
- Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Constructed of hardened stainless steel for better durability and longevity
- Unnecessary to wipe or clean the scale
- Supplied with a fitted plastic case
Some models are IP67 protected which eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
The Mitutoyo 571-203-30 Absolute Digimatic Depth Gage has the following specifications:
- Range: 0-300mm
- Resolution: .01mm
- Accuracy: +/- .03mm
- Mass (g): 310
