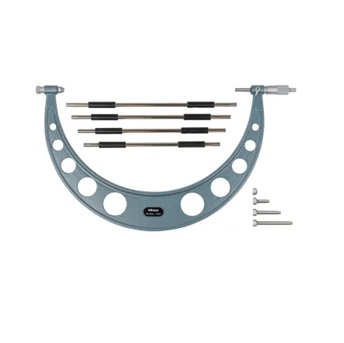

Mitutoyo Outside Micrometer Interchangeable Anvil 300-400mm

Description

A mitutoyo non-digital micrometer that accepts easily interchangeable anvils to enable a wide variety of measurement, such as tubing thickness, shoulder-edge distance and rivet height. A friction thimble guarantees repeatable measurement.

• Digital/Analog: Analog
• Flatness: 1 µm
• Graduation: 0,01 mm
• Inch-Metric: Metric
• Interchangeable anvils: 4
• Limit of error: ±10 µm
• Mass: 3.31
• Measuring face: Carbide-tipped micro-lap finish spindle and hardened steel anvil
• Measuring force: 10 – 14
• Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
• Parallelism: 6 μm
• Range: 300 – 400
• Scale: Thimble and sleeve satin chrome finish, ø21 mm
• Setting standard: 4 (300, 325, 350, 375 mm)
• Spindle feed error: 3
