Description
Precision sliding table saw designed to cut panels precisely, hd touch screen coupled with positioning motors provides high precision positioning of panels, maximum operation convenience, save place, save money.
- Height of saw blade can be adjusted electrically.
- Main saw blade rotating speed up to 5200rmp and max. Cutting length 3100mm.
- Sliding table adopted modern streamline appearance coupled with surface treatment, attractive appearance, longer service life.
- Intelligent transmission mechanism designed for maximum operational convenience, helps to save labour.
Features:
- Crosswise guiding board can move automatically by controlling on touch screen, easy and precise.
- Strong machine body for great stability and longer service life.
- Height of saw blade can be adjusted electrically just by one button.
- Main saw and scoring saw can tilt within 0-45°by using hand wheel.
-
BODY FRAME
- The well fabricated and heat treated body frame is strong and stable so that long service life is guaranteed.
-

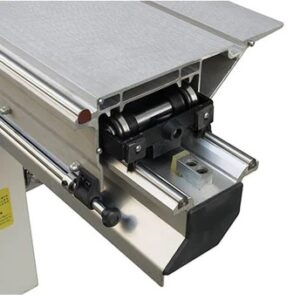

SLIDING CARRIAGE
- Linier round guide rail coordinated with ball result in higher quality, standard product, ensure high precision after long time use.
- The anodized aluminum carriage is stable and avoid scratches left on panels;
- Small rollers inside carriage for carriage smoothly sliding during cutting.
-
SLIDING FIXTURE
- Designed to fix sliding carriage after panel position is determined, ensures high precision.
-
SAW UNIT
- Powerful motors to ensure excellent cutting performance;
- Main saw blade rotating speed can be easily switched over between 5200 and 3800 rpm.
-

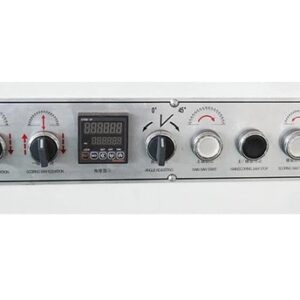

HD SCREEN
- Adopted HD screen to adjust not only main saw speed , but also start and stop of main saw and scoring saw available to be controlled by using it. Increase the operational convenience.
- Automatic positioning of panels is possible by inputting panel size in touch screen.
- Height of saw blade can be adjusted electrically.
- Two optional panels provide maximum convenience.
- Scram button used to cut power in case of emergency, prevent operator from danger.
-

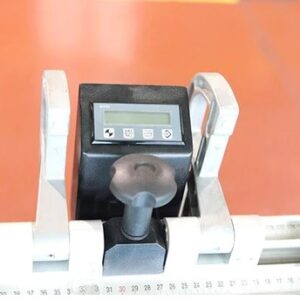

HIGH PRECISION ELECTRONIC DISPLAY
- Saw blade angle available to be set from 0° to 45°, the saw blade tilting can be numerical displayed.
- HIGH PRECISION NUMERICAL CONTROLLED BAFFLE
- After inputting the panel size in touch screen, baffle can fix panel automatically.
- Working table adopted thick steel sheet structure which results in higher quality and stiffness.
- Small or big panels are accessible.
-

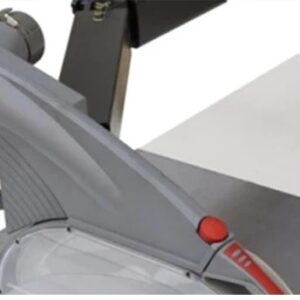

DUST EXTRACTION
- Used to prevent scrap and dust from flying so as to extend service life of machine, and provides good processing condition, helps protect operator from danger.
- Saw blade with a semi enclosed dust extraction overhang, gives the machine added dust collection performance.
-
LUBRICATION
- Lubrication for keeping machine components running Smoothly, easy to operate.
- Maintain machine for longer service life.
-
PUSH STICK
- The push stick is important safety tools for cutting narrow Work pieces.
- The push stick is used for cutting work pieces Within the danger zone of the saw blade (<120 mm).
- The push stick must be used for cutting narrow Work pieces (<30 mm).
- Worn down push woods must be replaced on time.
-
POWER SUPPLY
- To control power on or off of the machine.
-
TURBINE REDUCER
-
CONTROL CABINET
- Compact and simple structure, save space.
- All electric components adopted famous brand for higher quality and stability.
Specifications:
- Max. cutting length: 3100mm
- Max. cutting thickness: 0°:100mm; 45°:70mm
- Main saw:
- Power: 5.5kw
- Rotating speed: 3800/5200rpm
- Saw Blade diameter: （φ 300-φ 350）*φ 30mm
- Scoring saw:
- Power: 1.1kw
- Rotating speed: 9000rpm
- Saw blade diameter: φ 120*φ 22mm
- Dust collector: φ115mm
- Saw blade angle: 0-45°
- Power supply: 380 V; 50 Hz
- Air pressure required: 0.7 MPa
- Total power: 16.6kW
- Approx. weight: 980 kg
- Overall dimension: 3,300*3,430*1,670 mm
