Description
Model: CP210B (Made in Italy)
Pedrollo centrifugal pump with low/medium flow rate but high head.
Three Phase, 415V
Descriptions
- Suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made.
- These pumps are widely used in civil, agricultural and industrial applications such as for supplying water, in air conditioning and cooling systems, for irrigation, etc.
- The pump should be installed in an enclosed environment or sheltered from inclement weather.

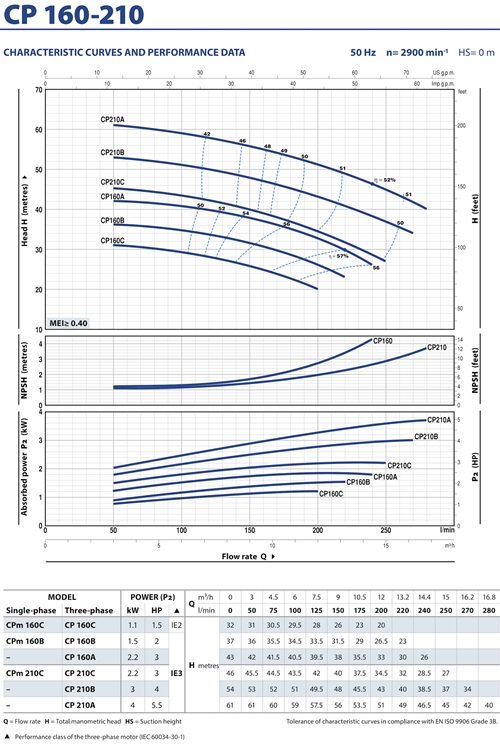

Performance Range
- Flow rate up to 900 l/min (54 m³/h)
- Head up to 76 m
Applications Limits
- • Manometric suction lift up to 7 m
- Liquid temperature between -10 °C and +90 °C
- Ambient temperature between -10 °C and +40 °C
- Max. working pressure 10 bar
- Continuous service S1
Specifications
| Size Discharge | 1-1/2″ x 1″ |
| Power | 3.0kW / 3 phase |
| Flow Rate | 50 ~ 270 L/min |
| Head | 53 ~ 34 meters |
| Manometric Suction Lift | Max. 7 meters |
| Liquid Temperature | Max. +90°C |
| Environment Temperature | Max. +40°C |
| Dimensions (L x W x H) | 402 x 252mm x 305mm |
| Weight | 30 kg |
Accessories Included
- Without cable
