Description

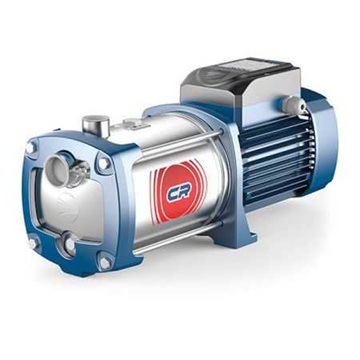

Quiet, energy-efficient stainless steel multi-stage pumps
※ Pump body: Stainless steel AISI 304
※ Cover: Stainless steel AISI 304
※ Diffusers: Stainless steel AISI 304
※ Impellers: Stainless steel AISI 304
※ Shaft: Stainless steel AISI 431
PERFORMANCE RANGE
• Flow rate up to 240 l/min (14.4 m3/h)
• Head up to 113 m
INSTALLATION AND USE
Designed to transfer clean water free from abrasive particles and safe liquids that will not damage any of the pump’s
components. Highly reliable and quiet, they are suitable for
domestic applications.
They work seamlessly with small to medium-sized pressure
tanks, offering an ideal setup for all irrigation requirements.
ELECTRIC MOTOR
The three-phase pumps are equipped with newly developed electric motors designed to work with inverters,
which guarantee stable and quiet operation.
Efficiency class IE3 for three-phase motors and IE2 for single-phase motors, with class F insulation and IPX4 protection.
KEY FEATURES
※ Stainless steel components extend service life and enhance efficiency.
※ Multi-stage design results in exceptionally quiet operation.
APPLICATION LIMITS
• Manometric suction head up to 7 m
• Liquid temperature between -10 °C and +90 °C
• Ambient temperature up to +40 °C
• Maximum working pressure 11 bar
