Name: Pferd HSS Rotary Cutter set 82 10-piece cut 3 dia. 16/12/10mm shank dia. 6mm universal medium fine
SKU: 82 HSS
Availability: InStock

Description

Technical information

HSS rotary cutter set 82 10-piece cut 3 dia. 16/12/10mm shank dia. 6mm universal medium fine

Cut3

Dia. shank 6 mm

PFERD TOOLS type 82 HSS

Packaging unit1 box

Cut 3 has chip dividers and is especially well-suited to machining of steel, cast steel and cast iron. It is used in a rotational speed range of 1,200 to 7,900 RPM, depending on the burr diameter.

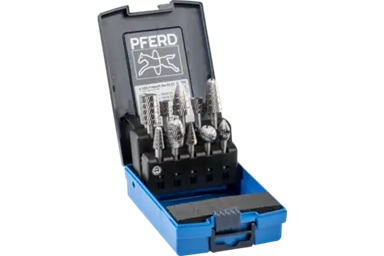

Set 82 HSS contains 10 HSS rotary cutters in the most common shapes and dimensions. The sturdy plastic box protects the tools from dirt and damage. The burrs are secured at the shanks, facilitating the selection and withdrawal of the tools.

Advantages

Highly aggressive.
Can be used at low rotational speeds.
Very robust tooth cutting edges due to the toughness of the high-speed steel (HSS).
The highly accurate concentricity enables impact free working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

Use HSS rotary cutters if your drive unit does not allow for high rotational speeds.
When used on soft materials, HSS rotary cutters can be an economical alternative to tungsten carbide burrs.
In contrast to tungsten carbide burrs, HSS rotary cutters need to be used with lower rotational speeds.

Materials that can be worked

Annealed cast iron Black annealed cast iron (GTS, GJMB) Case-hardened steels Cast iron Cast steel Grey/nodular cast iron (GG/GJL, GGG/GJS) Steel Steel, cast steel Steels up to 1,200 N/mm² (< 38 HRC) Steels up to 700 N/mm² (< 220 HB) Tool steels White annealed cast iron (GTW, GJMW)

Applications

Cutting out holes Deburring Leveling Milling Milling out Work on weld seams

Drive types

Automated centres Flexible shaft drive Straight grinder Tool machine

This set contains

HSS rotary cutter cylindrical shape end A-ST dia. 10x13mm shank dia. 6mm Z 3 universal medium fine chip divider

Item number: 22405336

EAN: 4007220058671
HSS rotary cutter cylindrical shape end A-ST dia. 16x25mm shank dia. 6mm Z 3 universal medium fine chip divider

Item number: 22405836

EAN: 4007220058763
HSS rotary cutter bullet shape K dia. 16×30 mm shank dia. 6 mm Z 3 universal medium fine chip divider

Item number: 22441836

EAN: 4007220059531
HSS rotary cutter ball shape F dia. 16×14 mm shank dia. 6 mm Z 3 universal medium fine chip divider

Item number: 22420836

EAN: 4007220059173
HSS rotary cutter conical pointed shape G dia. 10×20 mm shank dia. 6 mm Z 3 universal medium fine chip divider

Item number: 22423336

EAN: 4007220059258
HSS rotary cutter conical shape with radius end L dia. 10×20 mm shank dia. 6 mm Z 3 universal medium fine chip divider

Item number: 22450136

EAN: 4007220059579
HSS rotary cutter conical shape with radius end L dia. 16×30 mm shank dia. 6 mm Z 3 universal medium fine chip divider

Item number: 22451836

EAN: 4007220059630
HSS rotary cutter oval shape O dia. 16×25 mm shank dia. 6 mm Z 3 universal medium fine chip divider

Item number: 22461836

EAN: 4007220059760
HSS inverted cone end W-ST 12×13 mm shank dia. 6 mm Z 3 universal medium fine chip divider

Item number: 22471236

EAN: 4007220059784
HSS rotary cutter special shape dia. 12×18 mm shank dia. 6 mm Z 3 universal medium fine chip divider

Item number: 22104536

EAN: 4007220056035
