Description
Give you longer life due to the optimum coordination of flutes, spiral angle, rake angle and concentricity.
For unalloyed steels and non-ferrous metals.

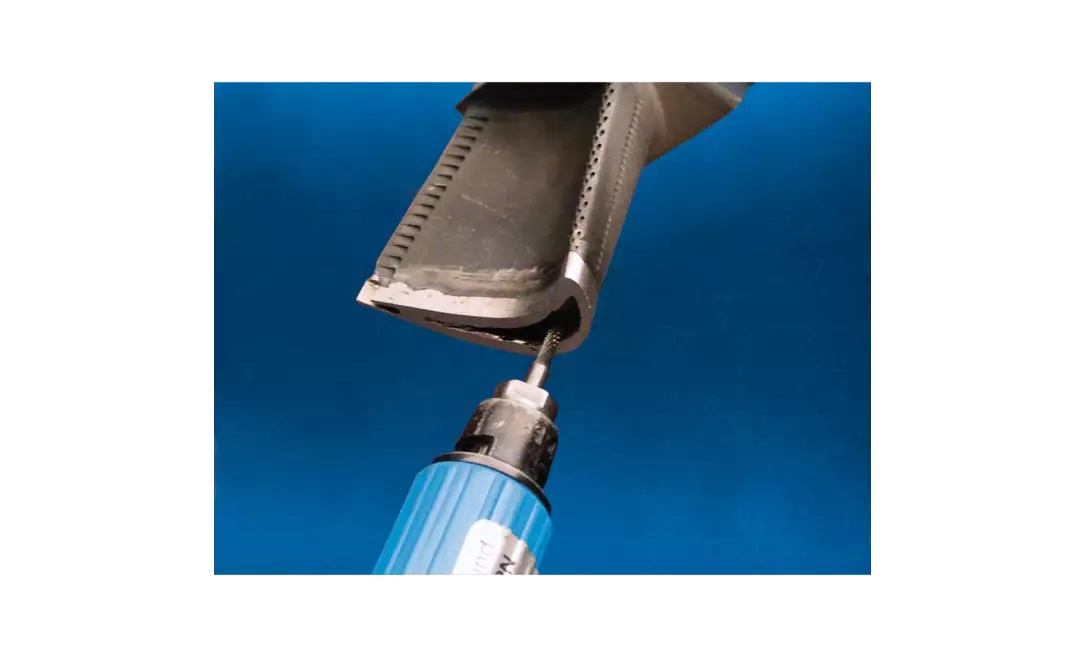

Fine deburring and fettling work.
Recommended cutting speed: 220 m/min for non-ferrous metals, 80 m/min for steel.
Short chips. 3mm shaft diameter.
Without End Cut

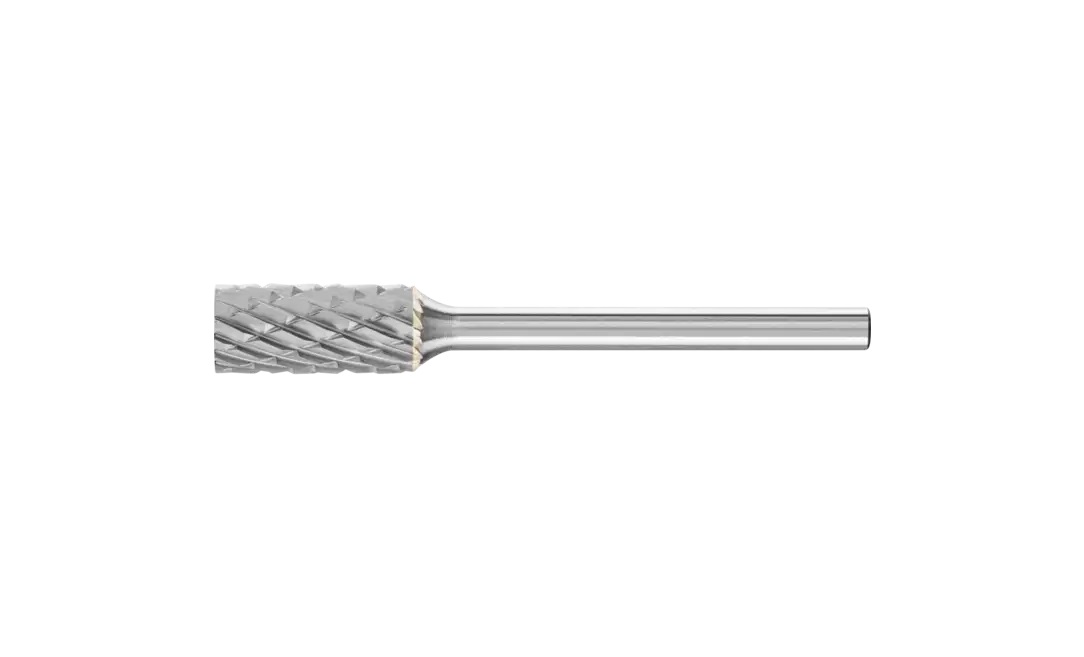

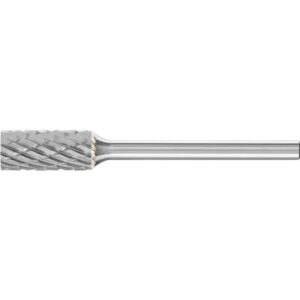

Cylindrical burr according to DIN 8032 with cut conforming to DIN 8033.
GL = total length (solid tungsten carbide)
SL = shank length (long steel shank)
Technical information
| Outer dia. | 6 mm |
| Width | 13 mm |
| Shank dia. | 3 mm |
| Overall length | 43 mm |
| Cut | 3 PLUS |
| Packing unit | 1 pcs. |
Materials that can be worked:
- Hard aluminium alloys
- High-temperature-resistant materials
- Cobalt-based alloys
- Other non-ferrous metals
- Nickel-based alloys (e. g. Inconell and Hasteloy)
- Stainless steel (INOX)
- Cast iron
- Grey/nodular cast iron (GG/GJL, GGG/GJS)
- Annealed cast iron
- Black cast iron (GTS, GJMB)
- White annealed cast iron (GTW, GJMW)
- Steel, cast steel
- Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
- Case-hardened steels
- Tool steels
- Steel
- Steels up to 1,200 N/mm² (< 38 HRC)
- Cast steel
Applications:
- Milling out
- Leveling
- Deburring
- Cutting out holes
- Surface work
- Milling
- Weld dressing
Drive types:
- Flexible shaft drive
- Straight grinder
- Stationary machines
- Robot applications
- Machine tool
Made in Germany
