Description
Features :
Computerised panel control system

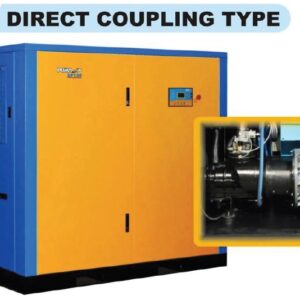

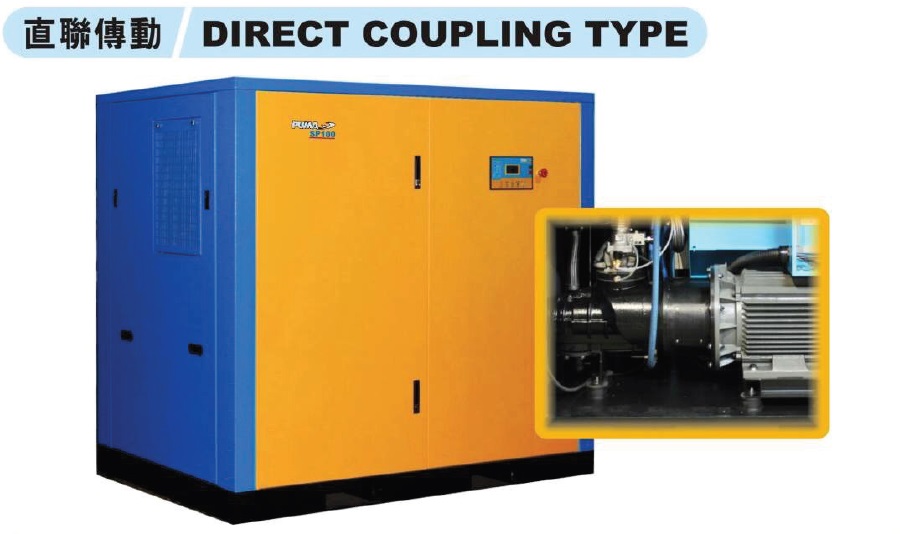

Direct coupling between motor and air end without transmission loss
Longer life for shaft seal and bearing because no transverse forces
Less repair parts, less maintenance cost, hence more reliable.
Use larger air end with lower speed, result in better energy efficiency.
Less overall vibration die to lower revolutionary speed.
Specifications:
22KW or 30 Hp Heavy Duty Induction Motor
3 Phase 415V 50 Hz
Air & Oil Separator tank comes with SGS Certificate
Working Pressure : 8 to 13 Kg/cm2
Air Displacement :
8 Kg /cm2 – 3.63m3/min / 128 cfm
10Kg/cm2 – 3.29m3/min/ 116 cfm
13Kg/cm2 – 2.49m3/min / 88cfm

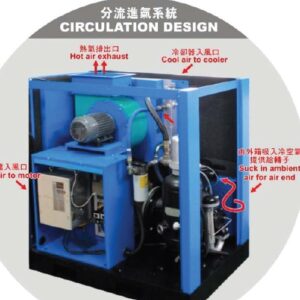

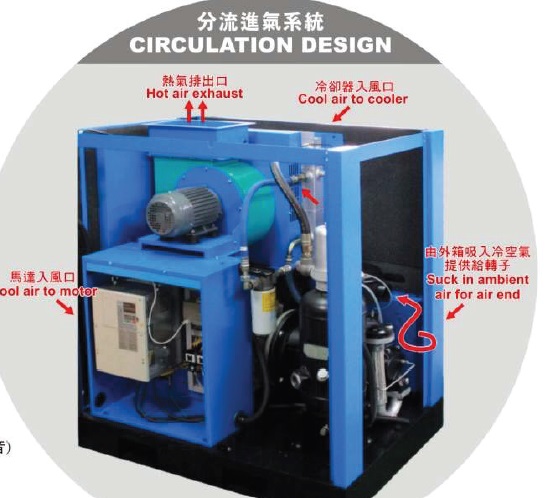

Cooling by air
Size : 130 x 85 x 145cm
Weight 680 Kg
Noise level : 74 dBA
Made in Taiwan
Optional : 1000L Vertical air tank at S$2,800.00 incl MOM certification
Indent period approx 6 to 8 weeks
