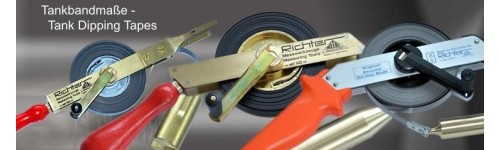

Richter IPM tank dipping tape 50M/165ft carbon steel w/ B2 Bob

Description

Richter IPM tank dipping tape, 50M/165fts, carbon steel, with B2 brass bob
13 mm blade wide (Etched type)

• Richter IPM Tank Dipping Tapes with Carbon Steel or stainless steel  in brass frame complete with B2 torpedo pattern Brass weight, 156 mm long, 30 mm diameter, weight 675 g, attached by a swivel hook, graduated in MM/inches not approved for stamping,
• Accuracy according EC Standard : Standard type in accuracy class II, +/- a + bL (a = 0,3 mm; b = 0,2 mm; L = length in m), also available in accuracy class I, +/- a + bL (a = 0,1 mm; b = 0,1 mm; L = length in m) at extra cost.
• Graduation : Black markings and figures, meter and feet figures in red colour on white background. Graduation in MM/Inch.  Graduation protected by burnt in laquer.
• Technical Data : Hardened tape steel width: 13,0 mm, thickness: 0,2 mm
• Tension : the tension force of the tape is in accordance with the weight of the dip weight (indicate when ordering for which dip weights the tapes should be used).
• Brass Frame : strong frame of brass with oblique handle of lacquered hardwood, strong foldable winding arm of brass protects the tape from unwinding when not in use, winding drum of metal. Tape rolls out near the handle (if not wanted, please specify in the order)
• Special equipment  : Earthing of the brass frame available at extra cost
• Metric graduations are in mm (IPM8)
• Imperial graduations are in feet, 1/16ths inches (IPM7B)
