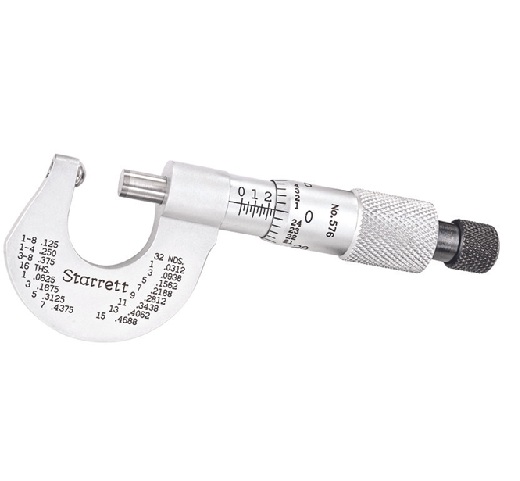

Starrett 576XR Rounded Anvil Outside Micrometer, 0-1/2″, Grad 0.001″

Description

The Starrett 576 micrometers are extremely useful for measuring the wall thickness of parts such as solid and split bearings, tubing, sleeves, collars, rings, various cylinders, and also measuring from the inside of a hole to an edge 0-1/2″ Range, .001″ Grad, Ratchet Stop, Carbide Spindle.

Features:

• No glare Starrett satin chrome finish
• Advanced sleeve design with staggered lines and distinct figures for precise, easy readability
• Balanced frame design for comfortable, accurate measuring
• Tapered frame for narrow slots and tight places
• Furnished with fixed, non-rotating anvil
• One-piece frame of drop forged steel
• Extremely hard and stable one-piece spindle
• Quick and easy adjustment
• Design allows 50% to 75% contact with the thread to be measured, insuring contact with the pitch diameter at all times
• Micro-lapped measuring face

Specifications:

• Micrometer Type:Mechanical Outside Micrometer with Rounded Anvils

• Electronic or Mechanical:Mechanical

• Range (in):0-1/2″

• Graduations (in):.001″

• Thimble Graduations:English

• Thimble Type:Ratchet

• Anvil/Spindle Material:Carbide

• Anvil Type:Round

• Spindle Type:Flat

Made in USA
