Description

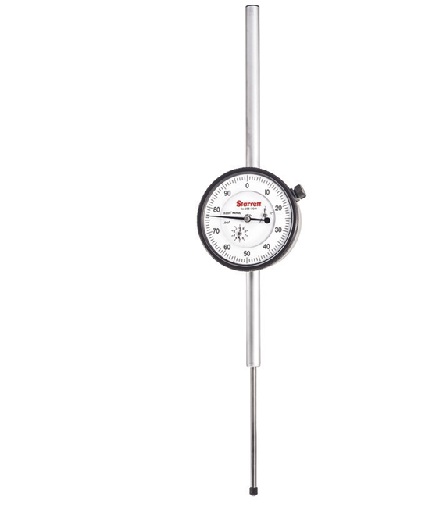

The Starrett 25, 655, 656 Series Dial Indicator with Long Range has a shockless, hardened steel gear train and are furnished with jewel bearings and lug-on-center backs.
Conforms to AGD specifications except for range.
Stem cap supplied as standard.
Furnished with continuous reading double dial with direct reading count hands.
3.000″ Range, Dial Reading 0-100, .001″ Grad.
- Rugged and simple unit construction with a universally fitting design
- Sharp bezel serrations for positive grip
- Unbreakable crystal
- Hardened stainless steel stem
- No-glare satin finish on case
- Hardened stainless steel rack and spindle
- Massive bridge for rigid bearing support
- Hardened stainless steel gears and pinions
- Non-reflecting white eggshell finish on dial
- Jewel Bearings
- Lug On Center Back Installed, Flat Back Included
Specifications:
-
Graduations (in):.001″
-
Dial Reading:0-100
-
Dial Color:White
-
Style:Long Range
-
Total Range (in):3.000″
-
Range One Rev. (in):.100″
-
Stem Diameter (in):.375″
-
Indicator Group:AGD 3
