Description

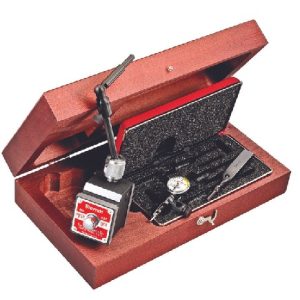

Magnetic Base and Post Assembly, With 711FSAZ Last Word Indicator and PT07101F Body Clamp, With Finished Wood Case

These sets have been put together for your ordering convenience, but you can mix and match other Starrett test or back-plunger indicators and attachments with the No. 657A Magnetic Base and Swivel Post Assembly to suit your needs.

The last word dial test indicator is among the most versatile available.
Their small size and variety of attachments will handle all jobs with ease and accuracy.

A very useful feature is the shaded dial-when used with a mirror, such as in a jig bore application, the operator will always know what the correct reading is.

Body Clamp permits the indicator to be held by its body and clamped to any diameter rod from 1/8-1/4″ (3-6mm).

It will attach directly to the rod on the starrett no. 252 height transfer gauge, nos. 57 and 257 Surface gauge scribers and no. 657A and AA holder.

It also attaches the universal shank to the indicator with the addition of no. PT07104F long and short arm.

• Three precision ground magnetic contact surfaces (plus V-step)
• Powerful, permanent magnetic base holds firmly to steel or iron surfaces – horizontally, vertically, upside-down
• The swivel post assembly on these holders provides universal adjustment in both horizontal and vertical planes
• With Finished Wood Case
• Made in USA

Packaging :

• Unit Pack Height (mm):58.42

• Unit Pack Length (mm):274.32

• Unit Pack Weight (kg):1.6782904

• Unit Pack Weight (lbs):4.1

• Unit Pack Width (mm):165.1

• Unit Pack Height (in):2.8

• Unit Pack Item Qty:1

• Unit Pack Length (in):11

• Unit Pack Width (in):6.5
