Description
Duty Rating: Type IA
Load: 300 lbs or approx 136 Kg

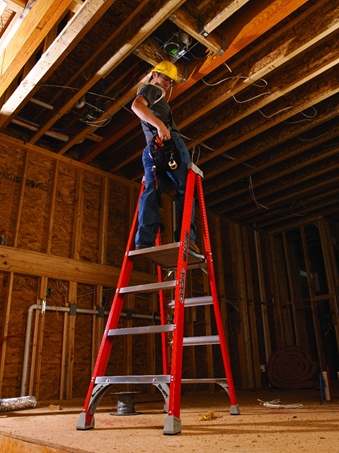

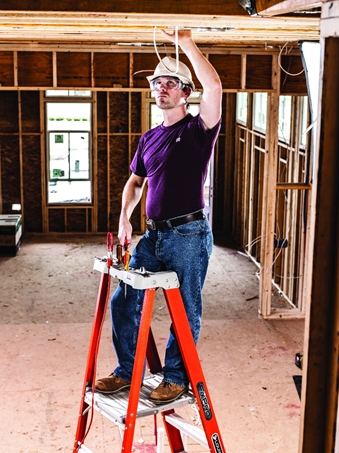

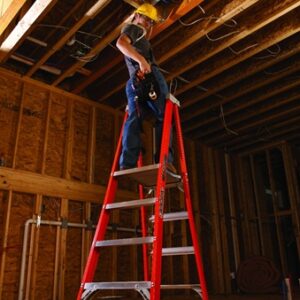

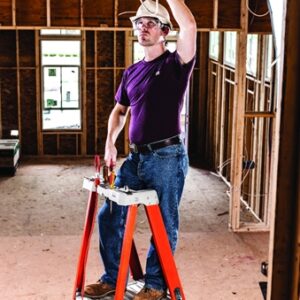

This Louisville 4 foot Pinnacle Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features a 30″ extended handrail (perfect tool belt height) and a 30% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1704 Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.
FEATURES
- 30″ Tall Extended Handrail From Top To Platform
- 30% Larger Platform Area For Added Comfort And Safety

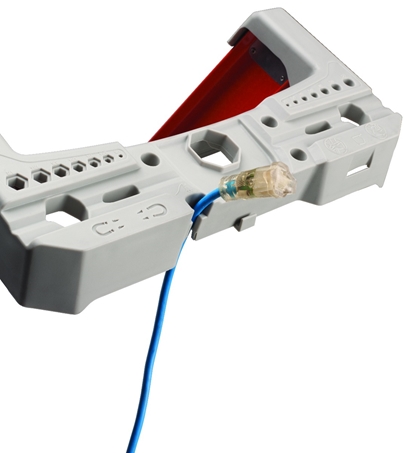

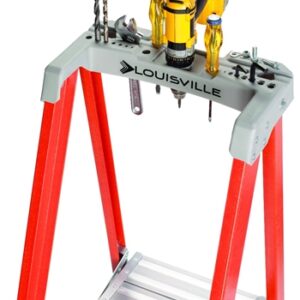

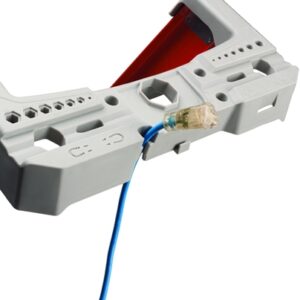

- ProTop With Multiple Tool Slots And Magnet

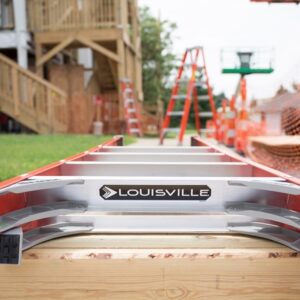

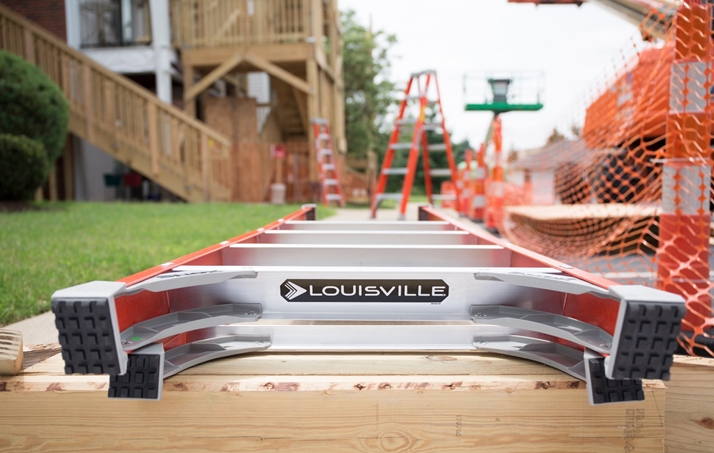

- Raptor Slip-resistant Boot
- Shox Impact Absorption System
- Double-Rivet Step Construction
- Wide Back Braces
PRODUCT SPECIFICATIONS
- Product: Step Ladders
- SKU: FXP1704
- Style: Pinnacle Pro Platform
- Duty Rating: Type IA
- Load Capacity (lbs): 300
- Size: 4
- Number of Steps: 4
- Rung Type: Standard Step
- Step Depth: 3
- Material: Fiberglass
- Weight: 25 lbs
- Maximum Standing Height (in): 3′ 9″
- Maximum Reach (in): 102
- Open Volume (cu. ft.): 10.25
- Open Volume (cu. m.): 1.35
- Open Height (in): 76
- Open Depth (in): 43.75
- Open Width (in): 24.75
- Closed Volume (cu. ft.): 11.74479167
- Closed Height: 80.0
- Closed Depth: 10
- Closed Width (in): 24.8
- Top Width Closed (in): 18.4375
- Platform Depth (in): 17.625
- Platform Front Width (in): 14.5
- Platform Rear Width (in): 14.5
- Platform Height (in): 1.218
- ANSI Certified
- OSHA Certified
- Made in USA
