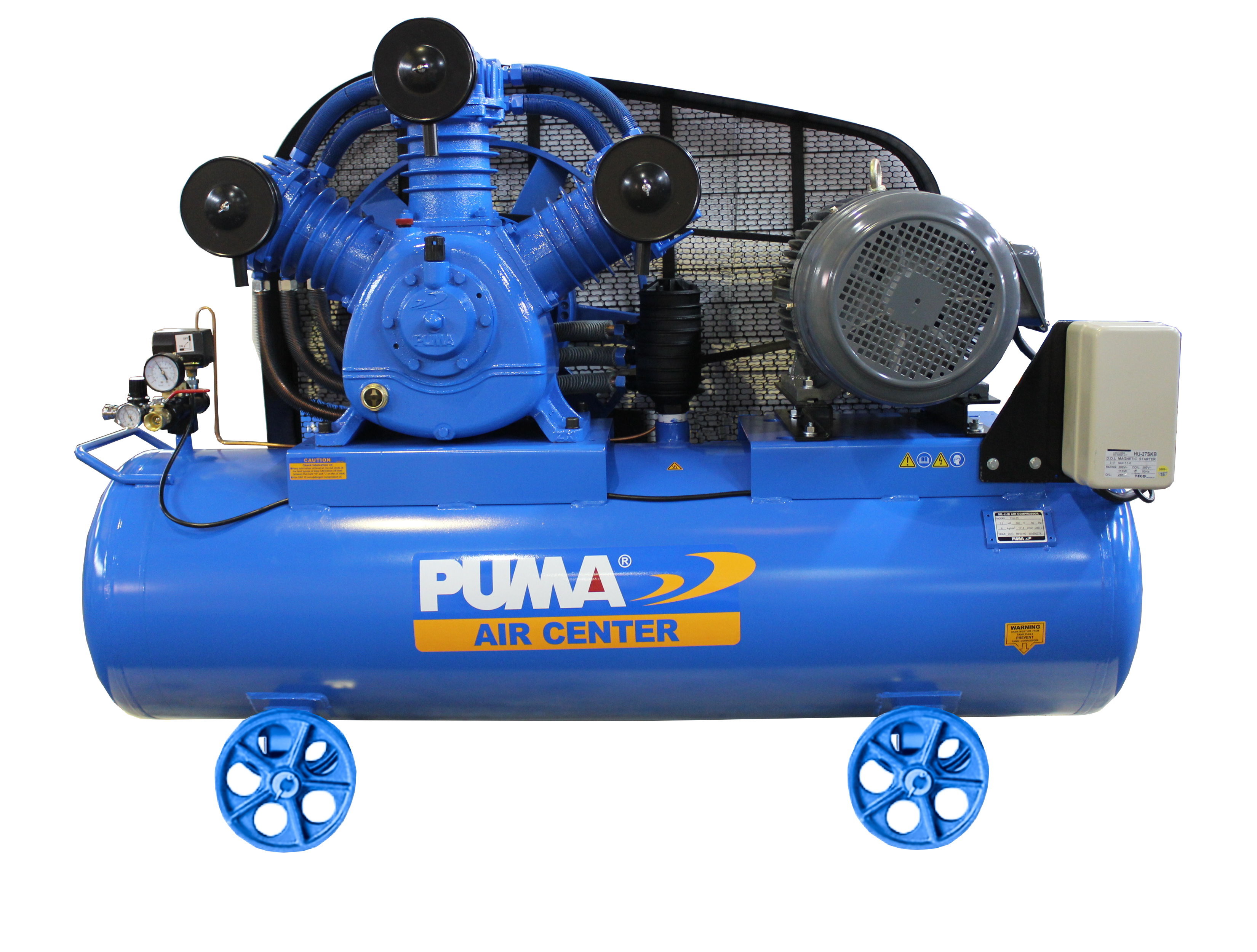

PUMA 15hp 285L Piston & Belt Driven Air Compressor

Description

Heavy Duty IE 3 Induction Motor 15hp or 11.25kw
Oil Lubricated Cast Iron Pump head.
3 phase 415V 50Hz
285L Accreditation certified Air receiver.
Cylinder : 3 nos
Piston diameter : 120mm
Stroke : 80mm
Air displacement :  1850L/min or approx 65.17 cfm
Working pressure : 8kg/cm2 or 115psi
Max Pressure : 10Kg/cm2 or 145psi
Speed : 810 rpm
Pump Pulley : 13.8ins
Motor Pulley : 6.5 ins
Dimension : 191 x 76 x 142cm
Approx Net weight : 505Kg
Motor & Pump are made in Taiwan
C/w new fully protected safety net

Optional :
MOM Certification at S$350 for 2 yrs license
User must provide MOM Workplace number in order to obtain this certificate
